Product Overview

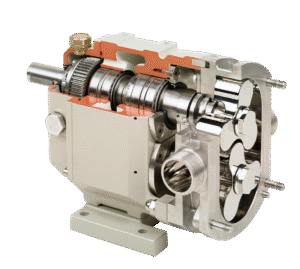

The B series lobe pumps are versatile and suitable for various applications, particularly those involving hygienic and chemical processes. OMAC lobe pumps are renowned worldwide for their durability, performance, reliability, and ease of maintenance.

This series offers 16 models with flow rates ranging from 0.05 to 200 m³/hr. The ST and SM models are made of AISI 316 stainless steel and differ in their tolerances (standard and increased). Both models are available with duplex shafts. The HP model features crescent-shaped rotors in an anti-seizure stainless steel alloy and duplex shafts for higher counter pressures up to 20 Bar.

The OMAC Lobe Pump is modular, allowing for quick and easy replacement of key parts like rotors and seals. A wide selection of rotors, seals, and gaskets is available to suit different applications. The pumps are constructed with a cast iron gearbox coated in epoxy paint or nickel-plated for added protection. A separating chamber between the rotor case and gearbox allows for the installation of balanced, compact, reversible mechanical seals, preventing contamination between the pumped fluid and gearbox lubricant. The gearbox base is designed for easy installation into horizontal and vertical pipelines.

The OMAC Lobe Pump’s modular design and high-quality components ensure reliable performance and long-lasting durability. The compact and rigid mechanical parts, including double conical roller bearings, shafts, and oversized gears, operate in an oil bath within the gearbox to minimize tolerances and maintain optimal pump performance. The wide range of seals and gaskets allows for material selection based on the specific fluid being handled.

Applications

• Hygienic
• Chemical

Certifications

• ATEX Certification
• FDA Approved
• CE Certification

Downloads

SERIES B Catalogue

Product Overview

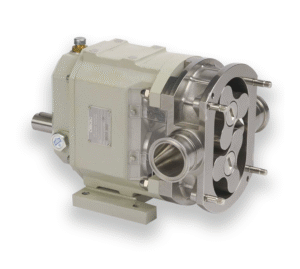

The BB-BA series is a new range of lobe pumps based on the successful B series pumps. These pumps maintain the principles of performance, solidity, and reliability while incorporating a new design for easier cleaning of wetted parts. The BA series has obtained 3A Sanitary Standard certification.

Several innovative features from the BF-F series have been incorporated into the BB-BA series. The pumps are designed according to the 3A Sanitary Standard (new standard number 02-10), and all product-wetted parts, surface finishes, and elastomers are 3A-FDA approved. The BB-BA series comes with a 3A nameplate and certificate.

The key differences between the classic B series and the BB/BA series include:

• Rotor case profile and geometry: Allows for complete self-draining of the pump with vertical ports.
• Built-in fixing nuts: With a flat cover, minimizes product entrapment and improves CIP cleaning.
• Flush end cover O-ring: Follows the rotor case profile for better cleaning.
• 7KFO mechanical seals: With larger, self-draining slots for thorough cleaning and to prevent the retention of potentially dangerous cleaning fluids.

The BB-BA series offers all the options available for the existing B series pumps, providing flexibility and customization to meet specific needs.

Applications

• Hygienic
• Chemical

Certifications

• ATEX Certification
• FDA Approved
• CE Certification

Downloads

SERIES BB-BA Catalogue

Product Overview

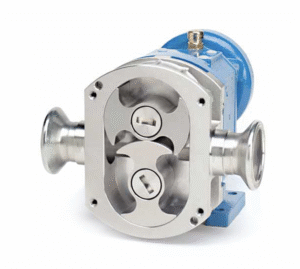

The BE series pumps are designed to be simple yet robust, featuring a compact monoblock design. This design integrates the drive unit directly with the pump using a hollow shaft and rear cover equipped with an IEC flange, resulting in a compact and lightweight structure. The new design, featuring a smooth cover and fixing nut built into the rotors, enhances the cleaning standard for improved hygiene.

These lobe pumps are fitted with bi-lobe rotary piston rotors made from either AISI 316L stainless steel or anti-friction alloy CY5SnBiM, which provide excellent volumetric efficiency and smooth, consistent transfer of various liquid or viscous products. In less demanding applications, BE pumps can serve as an alternative to the B series, offering a cost-effective solution that meets high sanitary standards. This makes the BE series an ideal choice for expanding the use of OMAC lobe pumps in diverse sectors, where affordability and hygiene are key considerations.

Applications

• Hygienic
• Chemical

Certifications

• FDA Approved
• CE Certification

Downloads

SERIES BE Catalogue

Product Overview

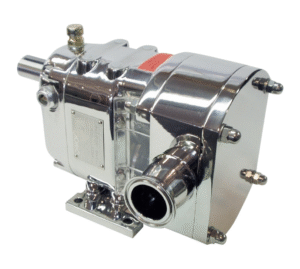

The BF series is a new range of lobe pumps based on the successful B series pumps. These pumps maintain the principles of performance, solidity, and reliability while incorporating a new design for easier external cleaning and featuring an AISI 304 gearbox. All product-wetted parts are made of AISI 316L stainless steel with a ferrite content of less than 3%. The cover has a smooth design with a new gasket, and the rotors offer the option of built-in fixing nuts or external fixing without nuts for the F series. The pump body is press-forged and has integral non-welded Tri-clamp or DIN11864-3 connections. The elimination of slots ensures easy CIP cleaning without cleaning fluid retention. The F series (without nuts on rotors) has obtained EHEDG certification for its easy cleanability.

The BF series uses FDA-approved elastomers and features new mechanical seals with larger, self-draining slots for thorough cleaning and to prevent the retention of potentially dangerous cleaning fluids. The standard internal finish of the pump is 0.8-2.8 micron RA, with the option of mechanical polishing to 0.8 µ RA finish or electropolishing and manual polishing to less than 0.6 micron RA. To maintain modularity, the BF series offers all the options available for the existing B series pumps.

Applications

• Hygienic
• Chemical

Certifications

• FDA Approved
• ATEX Certification
• CE 1935
• American 3a Standard

Downloads

SERIES BF Catalogue

Product Overview

The C and CF series are new sanitary-hygienic pumps designed to meet the high standards of the food and pharmaceutical industries. These lobe pumps are easily cleanable using hot water, reducing the need for chemical products. The materials, surface finishing, and design features have earned these pumps EHEDG and 3A certification.

The C series incorporates a new front-loading seal design for easier and faster servicing. Additionally, the external axial adjustment system simplifies maintenance. All parts that come into contact with the product are made of stainless steel 1.4404, and the pump body is cast with integral connections to eliminate welding. The rotors are designed for optimal efficiency and minimal product damage, with two available options: four-lobes and dual wing (bi-lobes).

The bearing housing is made of nickel-plated cast iron, ensuring sturdiness, compactness, and a rounded profile. The pumps can be installed horizontally or vertically (self-draining) and are available in an explosion-proof version (II 2G Ex h T4 Gb) for use in potentially explosive atmospheres.

Applications

• Hygienic
• Chemical

Certifications

• FDA Approved
• CE 1935
• American 3a Standard
• EHEDG

Downloads

SERIES C Catalogue

Product Overview

This pump features a **die-cast aluminum body** and **pressing elements** composed of two **rollers mounted on bearings**, which are fixed to a sturdy **central rotor**. The design allows for **shimming** of the rollers, enabling adjustment based on the **operating pressure**. For applications requiring reduced pulsation, **rotors with three rollers** are available.

Key specifications include a **maximum operating pressure of 8 bar**, though the **AMP 19 model** has a maximum pressure of **2 bar**. This robust and adaptable design ensures durability and reliable performance across various pressure ranges, making it suitable for demanding industrial applications where precise pressure control is critical.

Applications

• Food
• Drinks
• Pharma
• Cosmetic
• Chemical
• Industrial

Certifications

• ATEX Certification
• FDA Approved
• CE 1935

Downloads

Product Overview

This pump features a cast iron body with pressing elements comprising two rollers mounted on bearings, which are secured to a sturdy central rotor. The design offers the flexibility to shim the rollers based on the required operating pressure, allowing for customized performance adjustments.

The pump can handle a maximum pressure of 8 bar, making it suitable for heavy-duty industrial applications where robust construction and reliable pressure management are essential. The cast iron body ensures durability, while the roller-based mechanism provides consistent and efficient operation under varying pressure conditions.

Applications

• Hygienic
• Chemical

Certifications

• ATEX Certification
• FDA Approved
• CE 1935

Downloads

Product Overview

This pump features a cast iron body with pressing elements made up of two shoes that are adjustable in height to regulate pressure. Unlike rollers, the shoes apply a more gradual and even pressure on the tube, enabling the pump to reach a **maximum operating pressure of 15 bar**.

The pump’s chamber is filled with oil or glycerine, which serves the dual purpose of lubricating and cooling the tube during operation. This design makes it ideal for high-pressure applications, providing enhanced control and minimizing wear on the tubing through smooth, sustained pressure.

Applications

• Hygienic
• Chemical

Certifications

• ATEX Certification
• FDA Approved
• CE 1935

Downloads

Product Overview

The DS-M series peristaltic pumps are designed for industrial use, offering robustness and reliability. These pumps are ideal for dosing, handling low flow rates, and operating at low pressures. They feature a corrosion-resistant plastic body and a stainless steel rotor with three rollers, ensuring a consistent flow rate and precise dosing. The hose is easy to replace and comes in various materials and six interchangeable diameters ranging from 0.8 mm to 8 mm.

Applications

• Hygienic
• Chemical

Certifications

• ATEX Certification
• FDA Approved
• CE 1935

Downloads
